Network Video Recorder

Multiple NVR models designed and manufactured in Taiwan, supporting high-resolution (12MP) and high frame rate (60FPS) H.264/H.265 hardware decoding, seamlessly integrated with fault-tolerant RAID arrays, RTSP/HLS/RTMP streaming, and application data integration, customizable to your needs.

Product Description

The Network Video Recorder leverages the latest 64-bit embedded Linux system and Intel® GPU hardware decoding technology to deliver superior performance and stability. The system supports synchronized live monitoring, recording, and remote surveillance for up to 64 off-the-shell IP cameras or ONVIF cameras, with fast and reliable access to recorded data. With this network surveillance system, customers can rapidly deploy network surveillance applications with optimal operating efficiency — more secure and stable than counter-part Windows®-based systems.

Live View & Playback

■960FPS 1080P live view/playback
■Dual-screen 4K display: synchronized/independent/electronic map view
■PTZ control: optical/digital PTZ, preset points, patrol
■Playback control: forward, reverse, fast forward (1×~32×), single frame forward/backward
■Retrieval methods: timeline / event / tag / smart search

Recording Functions

■Recording modes: continuous / motion / alarm / scheduled
■Dual-stream recording with independent main/sub stream settings
■Pre-event recording 1~60 seconds, post-event 1~30 minutes adjustable
■Loop recording with configurable video retention days
■Per-channel resolution, frame rate, bitrate (VBR/CBR) settings
■Synchronized audio/video recording

Remote & Mobile Monitoring

■Camera IP forwarding for external workstations to connect to cameras via NVR
■Supports HTTP or HTTPS connections with certificate installation
■Windows / Web browser (no plugin) / CMS client
■iPhone / iPad / Android mobile device support
■HLS streaming: Edge / Chrome / Firefox plugin-free live view
■RTMP streaming: mobile live apps / online streaming platforms
■RTSP: supports VLC and other open-source players
■Mobile push notifications: photo + message push to designated token

Alarm Management

■Receives multiple event types with event start/end times listed
■Event logging, digital output control
■Send email alerts with attached recording files
■Auto window/video popup alerts
■Alarm-triggered PTZ movement
■Alarm sound playback
■Mobile push photo and message notifications
■Send recording files/photos to FTP server

Export & Backup

■Simultaneously export multiple camera recordings with digital watermark support, converted to AVI/ASF/MKV/MP4 format and exported to external USB storage
■Real-time or scheduled video backup to remote NVR or FTP server
■Backup jobs can select all recordings / daily recordings / recordings about to be deleted
■Can automatically time-lapse daily recordings into 1–10 minute (selectable) AVI files

System Management & Security

■4-level user permission management (view / playback / export / admin)
■Detailed event logs and user login records
■Supports N+1 hot standby, automatic failover within 20 seconds
■Supports JBOD / RAID 0/1/5/10, iSCSI
■USB drive / network firmware upgrade
■Remote shutdown / reboot / screen control
■Auto power-on and resume recording after abnormal power outage

AIoT Integration

■Universal data fusion protocol supporting third-party device integration (barcode scanners, POS terminals, etc.)
■Modbus TCP receive and control related applications (access control, emergency call, etc.)
■AI alarm events including person detection, virtual fence, loitering, people counting
■Real-time data and object detection overlays embedded in live view, recording, and exported video
■Configurable color, background transparency, and dwell time
■Filter historical data and events by tag

Product Model Lineup

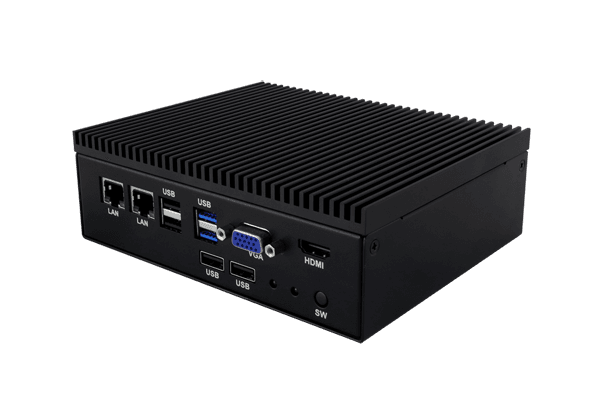

Fanless Series

■Silent fanless design for office or small-scale deployments, compact size with flexible installation
■Built-in highly reliable and secure Linux system software
■Manages 8 or more cameras with recording, live view, and playback functions
■Intel® Atom® CPU, 256GB SSD, 8GB RAM
■HDMI, VGA port, audio port
■Gigabit network port x2, USB slots
■Supports 2.5" SATA HDD x1 (HDD optional)
■9~24VDC, 60W adapter (12V/5A)
■160 x 130 x 50 mm

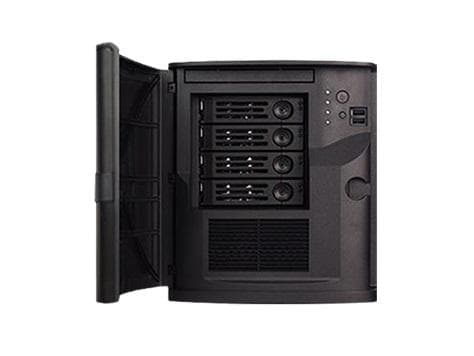

4 Bay Tower Series

■Tower chassis supporting 4 HDDs, ideal for small to medium surveillance systems with flexible expansion
■Built-in highly reliable and secure Linux system software
■Manages 16 or more cameras with recording, live view, and playback functions
■Intel® Celeron® CPU, 256GB SSD, 8GB RAM
■HDMI, DP, VGA port, audio port
■Gigabit network port x2, USB slots
■Software RAID
■3.5" hot-swap SATA HDD bay x4 (HDD optional)
■250W single power supply
■210 x 240 x 240 mm

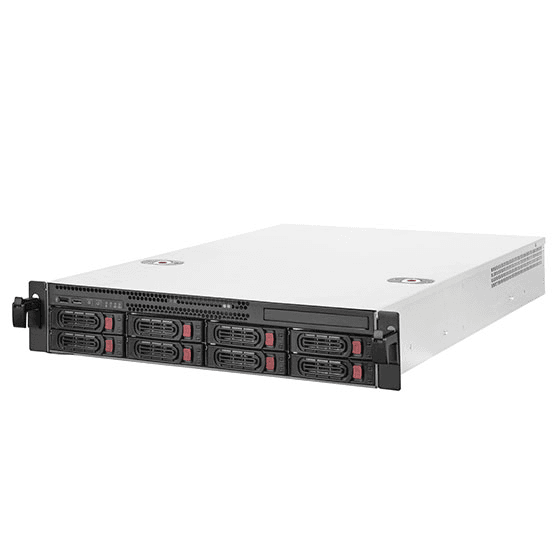

2U 8 Bay Rack Series

■2U rack-mount design supporting 8 HDDs, suitable for standard rack deployment with ample storage capacity
■Built-in highly reliable and secure Linux system software
■Manages 32 or more cameras with recording, live view, and playback functions
■Intel® Core™ i5 CPU, 256GB SSD, 8GB RAM
■HDMI, DP, VGA port, audio port
■Gigabit network port x2, USB slots
■Software RAID (hardware RAID optional)
■3.5" hot-swap SATA HDD bay x8 (HDD optional)
■550W single power supply (redundant power supply optional)
■430 x 88.5 x 660 mm

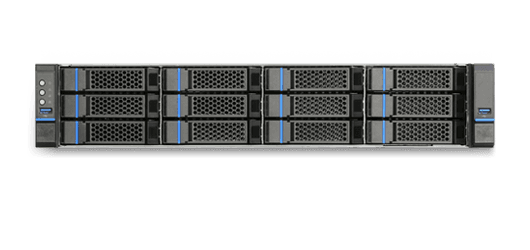

2U 12 Bay Rack Series

■2U rack-mount design supporting 12 HDDs, large-capacity recording storage for medium to large surveillance sites
■Built-in highly reliable and secure Linux system software
■Manages 64 or more cameras with recording, live view, and playback functions
■Intel® Core™ i7 CPU, 256GB SSD, 16GB RAM
■HDMI, DP, VGA port, audio port
■Gigabit network port x2, USB slots
■Hardware RAID card
■3.5" hot-swap SATA HDD bay x12 (HDD optional)
■800W redundant power supply (1+1 CRPS)
■658.6 x 438.0 x 87.0 mm

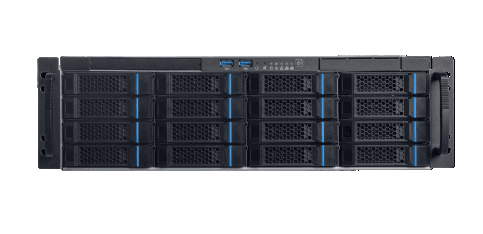

3U 16 Bay Rack Series

■3U rack-mount design supporting 16 HDDs, high-density storage configuration for large surveillance systems
■Built-in highly reliable and secure Linux system software
■Manages 64 or more cameras with recording, live view, and playback functions
■Intel® Core™ i7 CPU, 256GB SSD, 16GB RAM
■HDMI, DP, VGA port, audio port
■Gigabit network port x2, USB slots
■Hardware RAID card
■3.5" hot-swap SATA HDD bay x16 (HDD optional)
■1200W redundant power supply (1+1 CRPS)
■658.6 x 432.0 x 132.0 mm

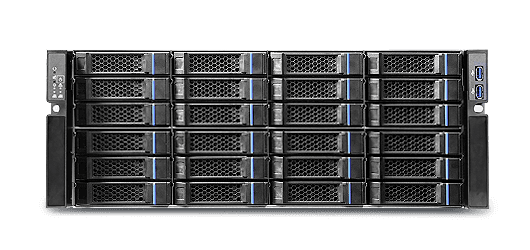

4U 24 Bay Rack Series

■4U rack-mount flagship model supporting 24 HDDs, maximum storage capacity for enterprise-grade large-scale deployment
■Built-in highly reliable and secure Linux system software
■Manages 256 or more cameras with recording, live view, and playback functions (project model)
■Intel® Core™ i7 CPU, 256GB SSD, 16GB RAM
■HDMI, DP, VGA port, audio port
■Gigabit network port x2, USB slots
■Hardware RAID card
■3.5" hot-swap SATA HDD bay x24 (HDD optional)
■1200W redundant power supply (1+1 CRPS)
■699 x 432 x 176 mm
