Video Management Platform
Designed for large-scale CCTV applications — a powerful, highly scalable, integrated enterprise-grade video management solution.
Product Description
The Video Management System Integration Platform is a powerful, highly scalable, integrated management solution designed for large-scale surveillance applications. Using a server/client architecture with a video management server and video management workstation, it provides superior solutions for distributed and unmanned surveillance applications. The video management server can simultaneously manage large numbers of DVR/XVR/NVR devices and thousands of cameras, storing all configuration, operation, alarm, and status data in a database for a single integrated management window.
Key Features
- ■Integrated functions including live/historical/event video monitoring, event/system/operation logs, electronic map, video wall management, and AI applications
- ■Supports Windows, web, and mobile client programs for different scenario needs
- ■Event-driven system design with seamless integration of AI events and physical alarm signals
- ■Integration with Windows domain server (Active Directory) for AD login authorization and custom permissions
- ■Centrally manage and update software and configuration for devices across all areas for flexible deployment
- ■Video management server supports 1+1 redundancy mechanism for high system stability
- ■Efficiently distributes live and historical video, supporting simultaneous access by multiple clients with stable smooth transmission
- ■Video data can be deeply integrated with manufacturing (production monitoring), retail (POS transactions), and logistics (barcode tracking) for fast event review and improved management efficiency
- ■Customizable to meet actual customer application needs

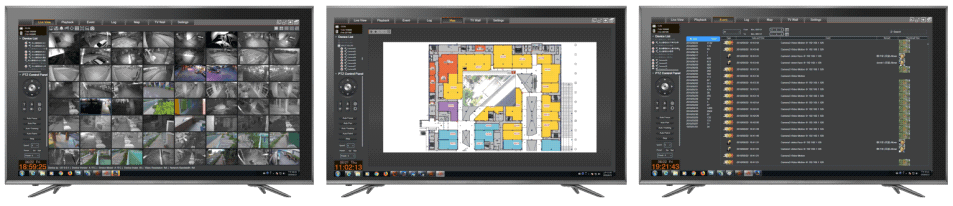

Live Monitoring Features
- ■GPU hardware decoding, live view lag within 1 second of actual time
- ■Supports 4 or more display output configurations, each can show live (auto-switch), playback, electronic map, or alarm management
- ■Single display output can simultaneously browse 64 or more camera channels
- ■System automatically adjusts main/sub streams based on CPU load, with GPU decoding to reduce CPU burden
- ■Multiple split-screen output modes, customizable by user preference with drag-and-drop camera icon deployment
- ■Display camera name (Chinese supported), date/time, IP, brand/model, resolution, bandwidth
- ■PTZ control: built-in control panel supporting pan/tilt, zoom, preset point storage, recall, and patrol
- ■Synchronized audio/video playback and two-way intercom (camera dependent)
Recording Playback & Export
- ■Single channel or up to 16 channels simultaneous playback; supports 1, 2×2, 3×3, 4×4 split views
- ■Timeline displays daily recording status distribution in 20-min, 5-min, 10-sec units
- ■Playback controls include pause, forward, reverse, fast forward (1X/2X/4X/8X/16X/32X), single frame forward/backward
- ■Smart search: supports intelligent fast search and event-based search for rapid retrieval
- ■Screenshot export: JPEG/BMP format with camera name and date/time watermark, export to local storage or USB
- ■Video export: AVI/ASF/MKV/MP4 format with digital watermark (user-defined content)
Management & Integration Features
- ■Supports our NVR and multi-brand XVR/DVR surveillance equipment
- ■Unlimited-level electronic map supporting fixed, dome, and PTZ camera icons; alarm flashing alerts; click-to-popup live video
- ■Detailed event logs with event video, sortable by date/time, exportable to csv format
- ■Detailed user operation logs exportable to csv format
- ■Trigger digital output, popup 1–4 camera live views, audio intercom, alarm sound
- ■Remote configuration of NVR cameras, recording, events, accounts, storage, network, system, I/O ports
- ■Supports Edge, Chrome, Firefox with no plugins for multi-channel live monitoring and playback
- ■Route any NVR channel live video to any split position on the video wall via network
Hardware Specifications

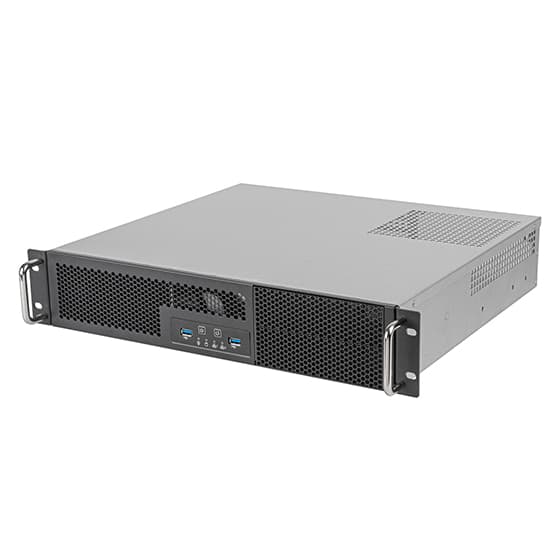

Video Management Server
- ■Intel® Core™ i7 CPU (or above)
- ■DDR4 16 GB RAM (or above)
- ■256 GB SSD (or above)
- ■HDMI × 1, DP × 1, VGA × 1
- ■Gigabit network port x 2
- ■500W single power supply (redundant power supply optional)
- ■USB keyboard and mouse (KVM can be used as an alternative)
- ■Embedded 64-bit Linux system
- ■430 x 88.5 x 400 mm

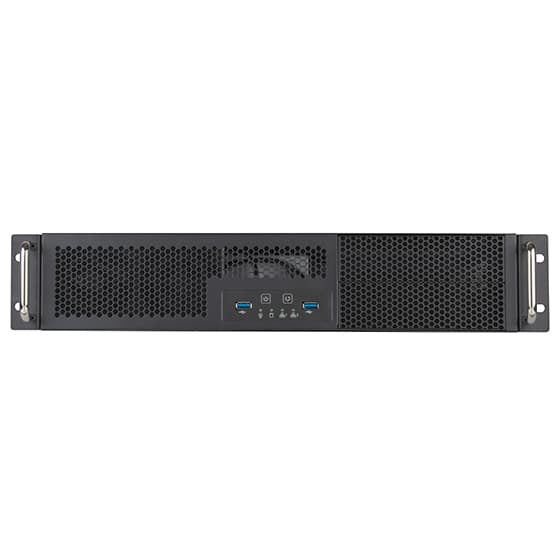

Video Control Workstation
- ■Intel® Core™ i7 CPU (or above)
- ■DDR4 16 GB RAM x 2 (or above)
- ■256 GB SSD (or above)
- ■HDMI × 1, DP × 1, VGA × 1 (expandable to 4 outputs with 4GB independant GPU card)
- ■Gigabit network port x 2
- ■500W single power supply
- ■USB keyboard and mouse
- ■Windows 11 Professional x64 or above
- ■430 x 88.5 x 400 mm

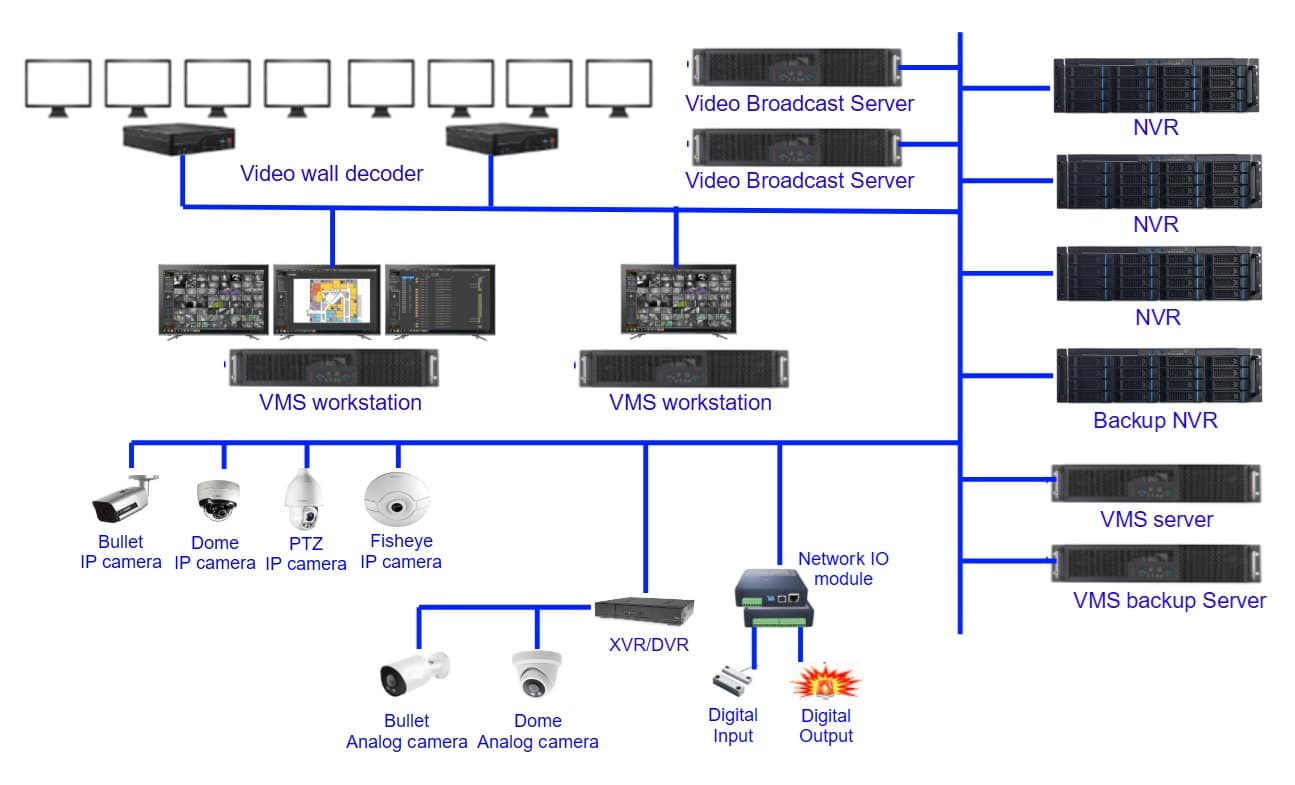

System Architecture Diagram
