| Optimum Linux NVR/hybrid DVR Kit is comprised of a NVR/hybrid DVR SATA DOM(AP-DOM-S)or USB DOM(AP-DOM-U) with embedded Linux-based software and optional analog/SDI DVR capture cards, I/O modules for hybrid application. This comprehensive kit, is powered by newest 64-bit embedded Linux and Intel® GPU H/W decoding technologies with superior stability and performance, can support most of today’s off-the shelf IP cameras (or analog/SDI cameras) for up to 64CH video recording quickly and reliably. With this NVR/hybrid DVR kit, customers can rapidly build a desktop or rack mount NVR/hybrid DVR with optimum surveillance and operating efficiency; it delivers superior security and stability compared with Windows®-powered NVR/hybrid DVR systems |
| Model |

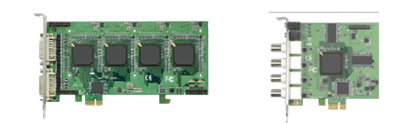

AP-SD16Y / AP-SD04Y |
| Photo |
|
| Interface |
PCI*1 |
| Video Input |
16*BNC / 4*BNC |
| Video Compression |
H.264 Baseline Profile (Hardware Compression) |
| Frame Rate |
NTSC: 704x480@30fps + 352x240@30fps
PAL: 704x576@25fps + 352x288@25fps |
| Audio Input |
16*RCA / 4*RCA |
| Audio Format |
Mono / 16-bit / 8000Hz |
| Dimension |
189 x 98.12mm / 105 x 101mm |
| Model |
AP-HD04Y |
| Photo |
|
| Interface |
PCI*4 |
| Video Input |
4*SDI |
| Video Compression |
H.264 Main Profile (Hardware Compression) |
| Frame Rate |
1920x1080P@30ftp + 960x540@30fps |
| Audio Input |
4*SDI |
| Audio Format |
Stereo / 16-bit / 48000Hz |
| Dimension |
166 x 109.15 mm |
| Model |
AP-HD04H |
| Photo |
|
| Interface |
PCIe*4 |
| Video Input |
4*HDMI |
| Video Compression |
H.264 Main Profile (Hardware Compression) |
| Frame Rate |
1920x1080P@30ftp + 960x540@30fps |
| Audio Input |
4*HDMI |
| Audio Format |
Stereo / 16-bit / 48000Hz |
| Dimension |
166 x 109.15 mm |
| Model |
AP-IO04Y |
| Photo |
|
| Input |
DI*4 |
| Output |
DO*4 Relay |
| Dimension |
65 x 84 mm |
| Model |
AP-CV83K |
| Photo |
|
| Serial Port |
RS-232*1 Port (DB9), RS-232/422/48*1 Port (Auto Detect) |
| Digital I/O |
4*HDMI |
| Ethernet |
H.264 Main Profile (Hardware Compression) |
| Power |
|
| Dimension |
166 x 109.15 mm |
NVR Software Specification |
Camera Support
- IP cameras auto discovery within LAN
- Supported IP Cameras: ACTi, A-Linking, Amega, A-MTK, Arlotto, ASCT, Avigilon, AVTECH, Axis, BOSCH, Brickcom, Corega, Dahua, ETROVISION, generic RTSP, Q’MAX, GKB, Hertone, Hunt, iPUX, IQinVision, LILIN, Messoa, ONVIF, OPlink, Pacidal, Pixord, Provideo, SEYEON, Shany, SMAX, SONY, Surveon, TRENDnet, TriCloud, VIVOTEK, YOKO, ZAVIO, ZOT
- Optional 4CH/16CH analog or 4CH SDI digital capture board for hybrid applications
- Video Compression: H.264/ MPEG-4/ M-JPEG
- Video Resolution: Up to 5 Megapixel
- Video Streaming: dual streaming with compression, resolution, frame rate, bit rate/quality, brightness, contrast, hue, saturation and sharpness settings
- Channels Support (Recording): allows for up to 64CH 1080P IP camera recording
- Audio: synchronized audio and video recording
Recording
- Recording Speed: Max. 64CH 1920FPS 1080P recording
- Recording Mode: Continuous/motion/alarm recording, multiple continuous/motion/alarm recording schedules
-
- Recording Buffer: Adjustable for pre-event recording and post-event recording, recycle HDD and keep video days
Dual Local Monitor
- Clone mode, two live view mode, live view + playback mode
Local live view
- Display Speed: Max. 64CH, 480FPS 1080P real-time monitoring
- Display Mode: 1, 2X2, 3X3, 3X4, 4X4, 5X5, 6X6, 7X7, 8X8, 1+5, 1+7, 1+2, 1+3, 1+12, sequential and event video view mode
- Display Resolution: 1920X1080
- Display Control: video snapshot, optical PTZ/digital PTZ control and audio control
- OSD information: camera name, date/time, record/event status
Local Playback
- Playback Speed: 480FPS 1080P playback
- Playback Mode: 1, 2X2, 3X3, 4X4 view mode
- Search Mode: By timeline, event and motion
- Playback Control: Play, pause, reverse play, previous frame/next frame, speed control(1, 2,4, 8. 16), video snapshot, digital zoom and audio control
- Export: convert recording video to AVI, ASF or MKV format and export to USB storage
Remote Live View
- View Mode: 1, 2X2, 3X3, 3X4, 4X4, 5X5, 6X6, 7X7, 8X8, 1+5, 1+7, 1+2, 1+3, 1+12 and sequential display from NVR server
- OSD information: camera name, date/time, record/event status
- View Control: Full screen display, original video aspect ratio, video snapshot, optical PTZ/digital PTZ control and audio control
|
- Device Tree: Tree View listing
- Event Control: Event List, Digital Input status and digital output control(optional module)
Remote Playback
- Playback Mode: 1, 2X2 view mode
- Search Mode: By timeline
- Playback Control: Play, pause, reverse play, previous key frame/next frame, speed control(1, 2,4, 8. 16), video snapshot, digital zoom and audio control
- Export: Convert recording video to AVI, ASF or MKV format and export to external USB device
Event Management
- Monitor video motion, digital input, video loss, storage full, hard disk failure, backup failure, system boot-up, system shutdown and system configuration changed events within specified time.
- On-screen event alert, event log, digital output, email alert with attached recording video alert actions can be activated when an event is triggered
Backup
- Backup recording video of previous day to ftp server
Emap
- Supports multiple layers of floor plans or site maps with device icons indicating the location of each camera(with orientation), sensor and alarm
- Device icons on Emap will change status when event happened and show live video for camera device
System
- Support USB and network firmware upgrade and patch
- Support remote system shutdown and reboot
- Support remote console management
Security
- Authority Management: four-level privilege, different user rights can be assigned to different users
- Event Logs: detailed event logs
- User Logs: record of the users currently logged on and previously logged on to the NVR
Disk Management
- Support HDD S.M.A.R.T. to monitor hard disk drives status
- Redundant storage with non-RAID, RAID-1, RAID-5 HDD modes and iSCSI device
Network
- Dual streams: high resolution stream for recording and low bandwidth stream for local, remote or mobile live view
- Protocol: HTTP, DHCP, Static IP, DNS, PPPoE, DDNS, FTP, NTP(Client and Server), RDATE, SSH, UPnP and SMTP
Utility
- NVR setup wizard (discovery NVR, NVR network setting and quick setup IP Camera)
- Windows client, WEB client, CMS client, iPhone/iPad app and Android app
|
|
